Our core competencies

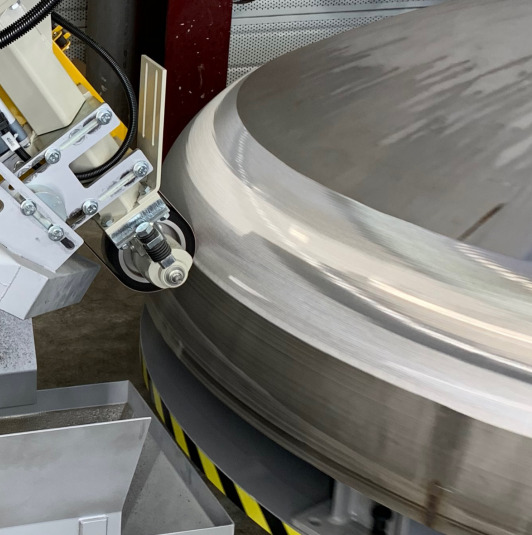

Dished end  / Cone grinding



High quality grinding and polishing of surfaces on dished end / cones, inside and outside, in size between 400mm and 14000mm, according to customer requirements.

Leading dishe end manufacturers around the world use our grinding solutions.

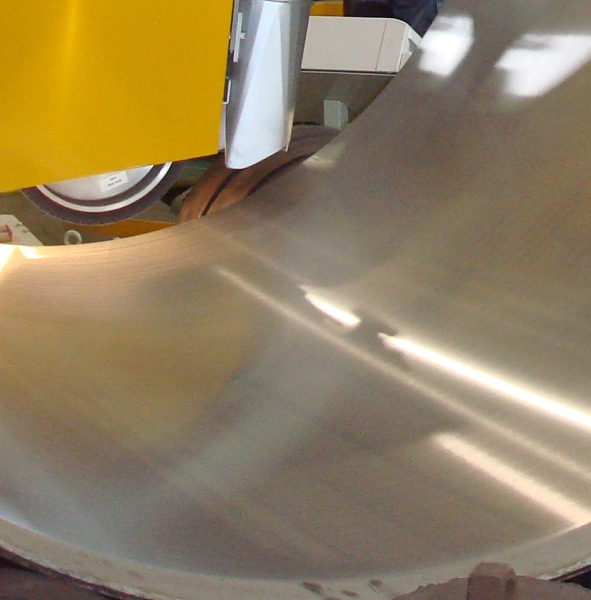

Surface grinding / Shell grinding



Grinding and polishing of surfaces on containers, inside and outside, from ø 230 mm to 14000mm, are our passion.

Farros The original

About us



On this page you will find the latest information about us. Our company is constantly evolving and growing. We have been offering a wide range of grinding solutions for more than 50 years. Over 900 customers used our grinding solution. Our mission is to provide the best solution to help you make your production more efficient. If you would like to contact us, please fill in the contact form on our website...

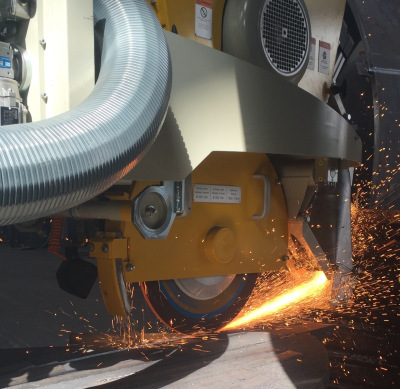

Backgouging



As soon as a shell is welded together with a dished end or a cone or with the next shell, the backgouging processing becomes essential. Whether longitudinal or circumferential weld, our grinding solution is based on grinding wheel technology and prevents hardening and carbonisation of the corner zone.

High quality grinding and polishing of surfaces on dished ends, vessels, cones etc, inside and outside, in sizes between 230mm and 14000mm, according to customer requirements. Leading manufacturers around the world use our grinding solutions.

Our Products



The finishing of surfaces of steel or stainless steels requires certain grinding and working techniques to achieve high quality surfaces in order to achieve an optimal result.

The expertise we have acquired over more than 50 years allows us to incorporate the desired results into the development of our grinding heads.

In the foreground are:



  • Consistent highest quality

  • Guaranteed surface roughness

  • Customised systems, which can be adapted to the special needs of our customers

  • Suitable for different sizes and shapes

  • Combination systems for grinding vessels and dished ends / cones

  • For almost all applications in stainless steel apparatus engineering and for cladded vessels



Here is an excerpt of our standard Grinding Heads:

Application: Small Vessel, Pipes



Dimension: smallest inside ø 230 mm, Length 1500-2500 mm



Motor: 4 kW



Contactwheel: ø100mm



Belt lenght: 465 mm

MS-230 Grinding Head for pipes

Application: Small Vessel



Dimension: smallest inside ø 460 mm,



Motor: 7.5 kW



Contactwheel: ø (175) 200 mm



Belt lenght: 50/75 x 1'000 mm short Version,

50/75 x 1'500mm long Version

MS-400 Grinding Head for Vessel

Surface grinding / Vessel grinding

MS-500 Grinding Head for Vessel with fork

Application: Vessel



Dimension: smallest inside ø 550 mm,



Motor: 9 kW



Contactwheel: ø (225) 300 mm



Belt lenght: 50/100 x 1'100 mm short Version,

50/100 x 1'700mm long Version

MS-1050 Grinding Head for big Vessel

Application: big Vessel



Dimension: smallest inside ø 1050 mm,



Motor: 11 kW



Contactwheel: ø 300 mm



Belt lenght: 50/100 x 2'250 mm

KS-760 The combined smalll Grinding Head

Application: Back gouging and weld seam grinding



Dimension: smallest inside ø 760 mm,



Motor: 7.5 kW



Grinding wheel: ø 400 mm, 6-16 mm thick



Contactwheel: ø 225 mm



Belt lenght: 75 x 1'500 mm

KS-1200 The combined Grinding Head

Application: Back gouging, weld seam grinding, and surfacing



Dimension: smallest inside ø 1450 mm,



Motor: 18.5 kW



Grinding wheel: ø 650 mm, 8-20 mm thick



Contactwheel: ø 300 mm



Belt lenght: 100 x 2'800 mm

KS-1210 The combined big Grinding Head

Application: Back gouging, weld seam grinding and surfacing



Dimension: smallest inside ø 1'600 mm,



Motor: 21 kW



Grinding wheel: ø 900 mm, 8-20 mm thick



Contactwheel ø 300 mm



Belt lenght: 100 x 3'250 mm

U-1100 The versatile Grinding Head

Application: For all surfaces



Dimension: smallest inside ø 1'200 mm,



Motor: 11 kW



Contactwheel: ø 225 mm



Belt lenght: 50-100 x 2'250 mm

Backgouging

Application: Back gouging and weld seam grinding



Dimension: smallest inside ø 760 mm,



Motor: 7.5 kW



Grinding wheel: ø 400 mm, 6-16 mm thick



Contactwheel: ø 225 mm



Belt lenght: 75 x 1'500 mm

KS-760 The combined small Grinding Head

KS-1200 The combined Grinding Head

Application: Back gouging, weld seam grinding and surfacing



Dimension: smallest inside ø 1450 mm,



Motor: 18.5 kW



Grinding wheel: ø 650 mm, 8-20 mm thick



Contactwheel: ø 300 mm



Belt lenght: 100 x 2'800 mm

KS-1210 The combined big Grinding Head

Application: Backgouging, weld seam grinding and surfacing



Dimension: kleinster Innenø 1'600 mm,



Motor: 21 kW



Grinding wheel: ø 900 mm, 8-20 mm thick



Contactwheel: ø 300 mm



Belt lenght: 100 x 3'250 mm

Dished end grinding

H-660 Grinding Head for small & medium Dished ends

Application: Small to medium dished ends, cones, hemispheres



Dimension: ø 400 - 6'000 mm



Motor: 9 kW



Contactwheel: ø (55) - 150 mm



Belt lenght: 50 x 2'250 mm

H-1450 Grinding Head for big Dished ends

Application: Big, heavy, thick-walled or cladded Dished ends



Dimension: ø 2'500 - 14'000 mm



Motor: 11kW



Contactwheel: ø 200 mm



Belt lenght: 80 x 2'600 mm

U-1100 The versatile Grinding Head

Application: For all surfaces



Dimension: smallest inside ø 1'200 mm,



Motor: 11 kW



Contactwheel: ø 225 mm



Beltlenght: 50-100 x 2'250 mm

Our Column & Booms



Our grinding heads are mounted on various C&B.

Depending on the head and requirements, various C&B in different designs are available.

Workpieces up to 14m diameter can be machined.

Special solutions with robot are possible.

Here is an excerpt of our standard C&B:





Accesories

We offer the suitable turning device for our machines.

Dished end rotating systems, Vessel rotating systems, rotary tilting table, Dust extraction systems as well as the suitable abrasive.

You can therefore obtain a turnkey grinding solution from us.



Used/refurbished Grinding installations

From time to time we have used, factory-revised grinding machines in our assortment.


Please ask us.



Our company

1940



the company Blatter AG was founded by Ernest Blatter. The first production facility was in Winterthur

About us



Our company continues to develop and grow. We have been providing a wide range of grinding solutions for over 50 years. Over 900 customers use our grinding solution. Our mission is to provide the best solution to help you make your production more efficient. If you would like to contact us, please fill in the contact form on our website...

Our company is located in the city of Frauenfeld in the north-east of Switzerland, only 40 km from Zurich International Airport. From the development to the assembly, up to the final assembly of the machine, is carried out in our company. Including the electrical and PLC integration, which we carry out in our workshop.
Transport by truck or container is naturally part of our service.

1970



the company was taken over by former employees and renamed Farros Blatter AG.

The company has become the world's leading manufacturer and supplier of specialised grinding machines for many different products, including rollers for the paper industry and welding preparation equipment for pressure vessels.

1997



Farros Blatter AG was taken over by the Finnish-Swedish group METSO.
The focus of interest was placed on the products and patents in the paper sector.

2004



Marc Hönes and Jürg Widmer buy the business of vessel grinding machines and found the new company FARROS Grinding Systems GmbH in Matzingen.

2011



the company was able to move into the new building in Frauenfeld.



Exhibitions



We participate in International Fairs. Due to the current situation (Covid-19), no fairs are planned.

As soon as the situation calms down, we will be present at one or the other trade fair...

Sales consulting



The sales team at Farros Grinding Systems GmbH will be happy to help you choose the right grinding system. The well-trained staff will support you from the first contact to the final acceptance of your new machines and systems.

We are happy to accept your valued enquiry at any time.

If desired, our detailed offers also include transport and installation at the final location. This way, you have everything from one source until the final acceptance of the machine.

Service



Our service department is on duty every day to ensure the best possible machine availability and complete satisfaction of our customers. A qualified team of specialists carries out maintenance, servicing and repair work on your grinding system and offers reliable and fast immediate assistance in the event of a fault.

Our services include:

* Commissioning of the grinding system and accessories

* Spare parts stock and spare parts deliveries

* Customer training / application technology

* Machine overhauls

* Warranty and service
